Tapered Spool（For Enameled Wire)
Product Parameter
|

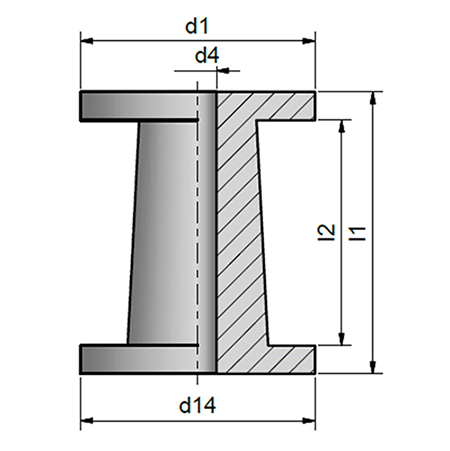

Spool Type |
d1 [mm] |
d4 [mm] |
I1 [mm] |
I2 [mm] |
d14 [mm] |
Spool weight [g] |
nom. net wire weight [kg] * |
recommended for wire sizes [mm] |
spools per box |
|||||
|
Enameled Copper Wire |
Enameled Aluminum Wire |
Enameled CCA Wire |
||||||||||||
|
10%CCA |
30%CCA |
40%CCA |
50%CCA |
? |
? |
|||||||||
|
PT-4 |
124 |
22 |
200 |
170 |
140 |
0.23 |
6 |
2 |
2.5 |
3 |
3.2 |
3.5 |
0.04~0.19 |
4 |
|
PT-10 |
160 |
22 |
230 |
200 |
180 |
0.45 |
15 |
4.5 |
5 |
6 |
6.5 |
7.5 |
0.20~0.29 |
2/4 |
|
PT-15 |
180 |
22 |
230 |
200 |
200 |
0.54 |
20 |
6.5 |
7 |
8 |
8.5 |
9 |
0.30~0.62 |
1/2 |
|
PT-25 |
215 |
32 |
280 |
250 |
230 |
0.75 |
28 |
10 |
11 |
13 |
14 |
15 |
0.65~4.00 |
1 |
|
PT-60 |
270 |
32 |
406 |
350 |
300 |
2.05 |
80 |
24 |
24 |
28 |
32 |
35 |
0.65~4.00 |
1 |
